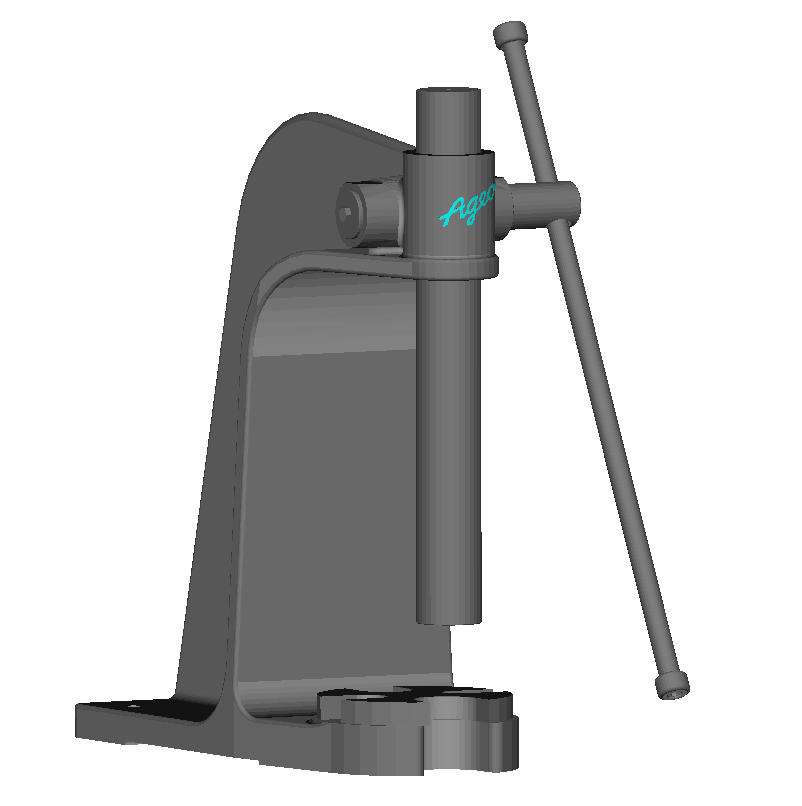

Mandrel press with lever
Art. : DP500 bis DP3000| pressing power: | from 5 kN to 30 kN |
| Max. height of installation: | from 150 mm to 500 mm |
| depth of throat till the centre of ram : | from 95 mm to 250 mm |
| net weight: | from 16 kg |
- consultation & ordering
-
+49 (0) 6151 101 50 00
-
The Ageo PRESS mandrel Presses with lever are robust and inexpensive presses for a variety of applications. The high precision manufacturing guarantees safety, reliability and durability. Mandrel presses with lever are ideal for grouting of turn handles, bushings, bearings, bolts and pins.
-
DP500 DP1000 DP1000V DP1500 DP2000 DP3000 Pressing power (kN) 5 10 10 15 20 30 Lever transmission (i) 1:14 1:27 1:27 1:27 1:27 1:38 Depth of throat till the centre of ram (mm) a 95 155 155 220 250 250 Max.Height Of Installation (mm) b 150 260 480 350 420 500 Stroke of ram (mm) c 150 260 500 350 420 500 Diameter of ram (mm) d 32 40 40 58 58 78 Height of pressing body (mm) e 290 440 665 570 700 780 Slot width of the mounting plate(mm) f 15-35 20-46 20-46 20-46 35-80 35-80 Net weight(kg) 16 45 56 90 143 175 Net weight with base frame(kg) - 78 89 120 171 203 * Further models on request;* Packing size and weight for seaworthy packaging upon request. - Special accessories:
• Base frame in solid design
• Tool-receiving bore in the ram, with retaining screw for tools, spikes etc.
• Rectangular table with T-slot (instead of the slotted disc) for mounting devices and tools.
• Distortion lock for the ram
• Adjustable depth Stopp
• Mechanical return stroke support
• Rack locking/ram locking
